Size customized 0.32mm thickness Silicon Nitride Substrates For IGBT And SiC MOSFET

Name: Size customized 032mm thickness Silicon Nitride Substrates For IGBT And SiC MOSFET
Brand: Cersol
Price: 1 USD

Wholesale Size customized 0.32mm thickness Silicon Nitride Substrates For IGBT And SiC MOSFET from china suppliers

Brand Name : Cersol

Place of Origin : China

Payment Terms : T/T IN ADVANCE

Delivery Time : USUALLY 1 MONTH

Packaging Details : BAGS, BARRELS, CARTONS

Material : siliocn nitride

Color : black

Application : IGBT

Contact Now

Description

Silicon nitride ceramics have many excellent performances such as high hardness, high strength, small thermal expansion coefficient, small high temperature creep, good antioxidant performance, good thermal corrosion performance, and small friction coefficients. It is the best ceramic material in comprehensive performance. It is widely used in the fields of aerospace, high -speed rail, and new energy vehicles. It is an important core heat dissipation material for insulation grid bipolar crystal pipes (IGBT) and silicon carbide power module (SIC MOSFET).

Size customized 0.32mm thickness Silicon Nitride Substrates For IGBT And SiC MOSFET

Features

High hardness,high strength
Good antioxidant performance
Good thermal corrosion performance
Small thermal expansion coefficient
Small high temperature creep
Small friction coefficients

Dimension

Dimension	Thickness	Length and Width
	0.32mm	114.3*114.3mm
		138*190mm
Remarks: Customized according to customer requirements

Materials Properties

Materials Properties	Formula	Si3N4
	Color	Grey/ White
	Density(g/cm³)	≥3.20
	Surface roughness Ra (μm)	0.200-0.600
	Flexural Strength (MPa)	＞800
	Camber (Length‰)	≤3
	Thermal Conductivity (25℃,W/m·k)	＞80
	Coefficient of thermal expansion (10^-6/K{40-400℃})	2.0-3.0
	Coefficient of thermal expansion (10^-6/K{40-800℃})	2.0-3.0
	Dielectric Constant	≥17
	Volume resistance	≥10¹⁴

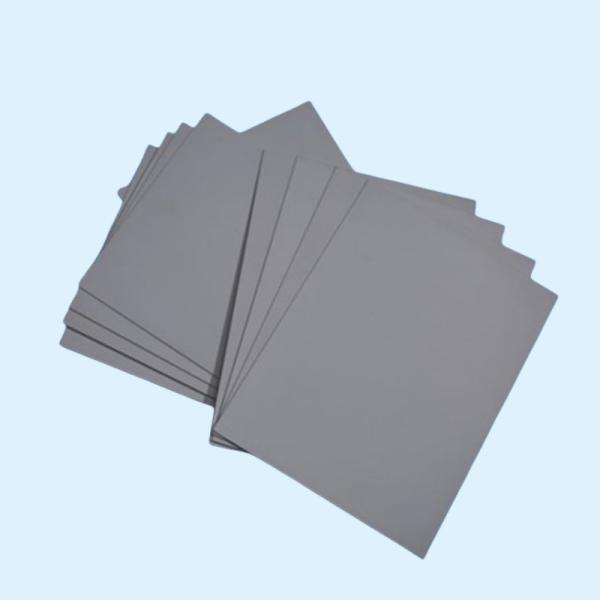

Size customized 0.32mm thickness Silicon Nitride Substrates For IGBT And SiC MOSFET Images
